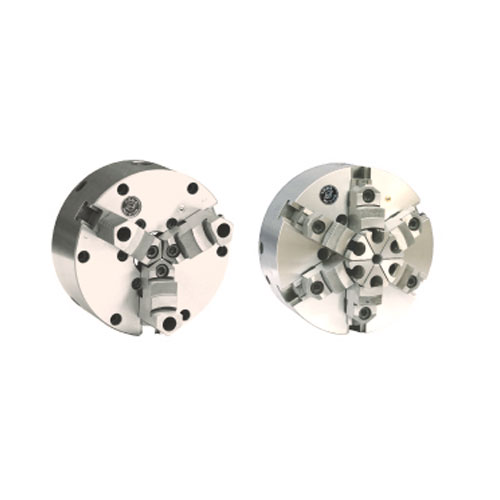

產品：KM31[33]
產品特性:
■特點：
☆短圓柱連接形式。
☆KM31為三爪卡盤；KM33為六爪卡盤。
☆具有可調精度，調整后的卡盤精度可達0.013mm，15″及以上規格可達0.025mm。
■Specificity:
☆Short cylindrical center mounting.
☆KM31 are of three-jaw and KM33 are of six-jaw.
☆With adjustable structure , the the clamping precision can reach 0.013mm, .15″ and above can reach 0.025mm.
產品詳情

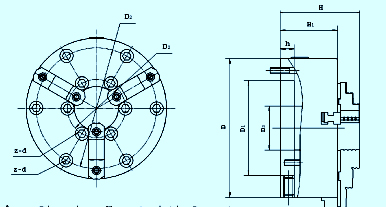

■尺寸、性能參數 Dimension、Characteristic Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
H
|
H1
|
h
|
z-d
|
凈重kg
Net WT.
|
|
100
|
103
|
53.98
|
89.662
|
26
|
78
|
59
|
16.7
|
6-M5
|
4
|
|
4in.
|
4
|
2.125
|
3.53
|
1.02
|
3.07
|
2.32
|
0.657
|
6-10#-24
|
4
|
|
125
|
127
|
60.33
|
112.73
|
33
|
95.7
|
56
|
16.7
|
3-M6
|
6
|
|
5in.
|
5
|
2.375
|
4.438
|
1.299
|
3.768
|
2.205
|
0.657
|
3-1/4-20
|
6
|
|
160
|
152.5
|
79.37
|
135.70
|
39
|
98.6
|
59
|
17.5
|
6-M6
|
7
|
|
6in.
|
6
|
3.125
|
5.343
|
1.535
|
3.882
|
2.323
|
0.689
|
6-1/4-20
|
7
|
|
200
|
210
|
120.65
|
190.5
|
57.5
|
132.2
|
79.3
|
19.1
|
6-M10
|
19
|
|
8in.
|
8.27
|
4.75
|
7.5
|
2.264
|
5.206
|
3.122
|
0.752
|
6-3/8-16
|
19
|
|
250※
|
254
|
161.90
|
111.13
|
72
|
153.8
|
88.7
|
20.4
|
6-M12
|
30
|
|
10in. ※
|
10
|
6.374
|
4.375
|
2.835
|
6.056
|
3.492
|
0.803
|
6-7/16-14
|
30
|
|
315※
|
305
|
200.79
|
133.35
|
83
|
166.9
|
101.1
|
20.4
|
6-M12
|
50
|
|
12in. ※
|
12
|
7.905
|
5.25
|
3.268
|
6.569
|
3.980
|
0.803
|
6-1/2-13
|
50
|
|
380※
|
381
|
299.237
|
171.45
|
108
|
223.5
|
136.2
|
27
|
6-M16
|
100
|
|
15in.※
|
15
|
11.781
|
6.75
|
4.252
|
8.799
|
5.362
|
1.063
|
6-5/8-11
|
100
|
|
530※
|
533.4
|
407.162
|
234.95
|
134
|
249.7
|
158.7
|
30.1
|
6-M20
|
-
|
|
21 in. ※
|
21
|
16.03
|
9.25
|
5.275
|
9.831
|
6.248
|
1.185
|
6-3/4-10
|
-
|
產品備注
帶※號者僅采用內圈螺釘連接，其余僅采用外圈螺釘連接。
The chucks with ※ use inner tapped holes while others use outer tapped holes.
|
