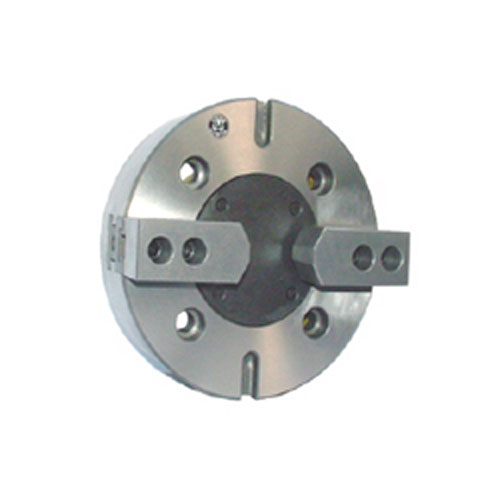

產品：K51T
產品特性:
■特點：
☆短圓柱連接形式。
☆適用于加工各種異形零件,尤其是閥門零件。
☆性能可靠,經濟實用。
■Specificity:
☆Short cylindrical center mounting.
☆Suitable for machining various special shaped components , especially for the valve type ones.
☆The chucks are economic practical and with high performance reliability.
產品詳情

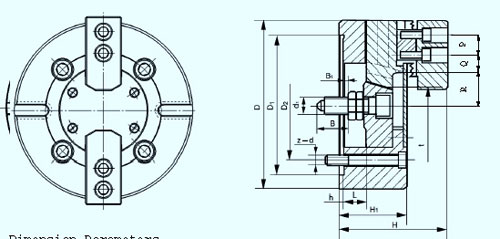

■尺寸參數 Dimension Parameters
|
規格D
Size
|
D1
|
D2
|
d1
|
H1
|
H
|
h
|
P
|
Qmax
|
Qmin
|
Rmax
|
Rmin
|
B
|
B1max
|
B1min
|
z-d
|
|
160
|
130
|
110
|
M16
|
70
|
(113)117
|
4
|
20
|
16
|
6
|
38
|
33
|
30
|
1
|
-18
|
4-M12
|
|
200
|
165
|
130
|
M20
|
80
|
(131)133
|
4
|
24
|
25
|
8
|
44
|
38
|
34
|
0
|
-23
|
4-M14
|
|
250
|
210
|
171.4
|
M22
|
95
|
(155)153
|
5
|
28
|
31
|
10
|
57
|
50
|
37
|
2
|
-25
|
4-M16
|
|
320
|
270
|
235
|
M24
|
105
|
177
|
6
|
32
|
44
|
12
|
75
|
66
|
41
|
3
|
-27
|
4-M18
|
|
400
|
340
|
250
|
M24
|
115
|
(195)199
|
6
|
45
|
68
|
13
|
76
|
37
|
39
|
8
|
-26
|
4-M20
|
■性能參數 Characteristic Parameters
|
規格D
Size
|
楔心套行程Lmax
Axial wedge stroke
|
爪行程（直徑）
Jaw stroke(Dia.)
|
許用推拉力kN
Max. draw pull
|
最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
Clpmping ra20-160nge
|
撐緊范圍
Jamming range
|
凈重Kg
Net WT
|
|
160
|
19
|
10
|
10
|
22
|
2800
|
10-160
|
25-160
|
10
|
|
200
|
23
|
12
|
16.7
|
37
|
2300
|
16-200
|
30-200
|
20
|
|
250
|
27
|
14
|
30
|
66
|
1800
|
35-250
|
54-250
|
31
|
|
320
|
30
|
16
|
37
|
82
|
1300
|
35(50)-320
|
50(65)-320
|
48
|
|
400
|
34
|
18
|
46
|
102
|
800
|
35(65)-400
|
50(80)-400
|
78
|
產品備注
※表中數值用于K51TB型卡盤。
※The values on the above table’s parentheses is for K51TB chuck .
|
